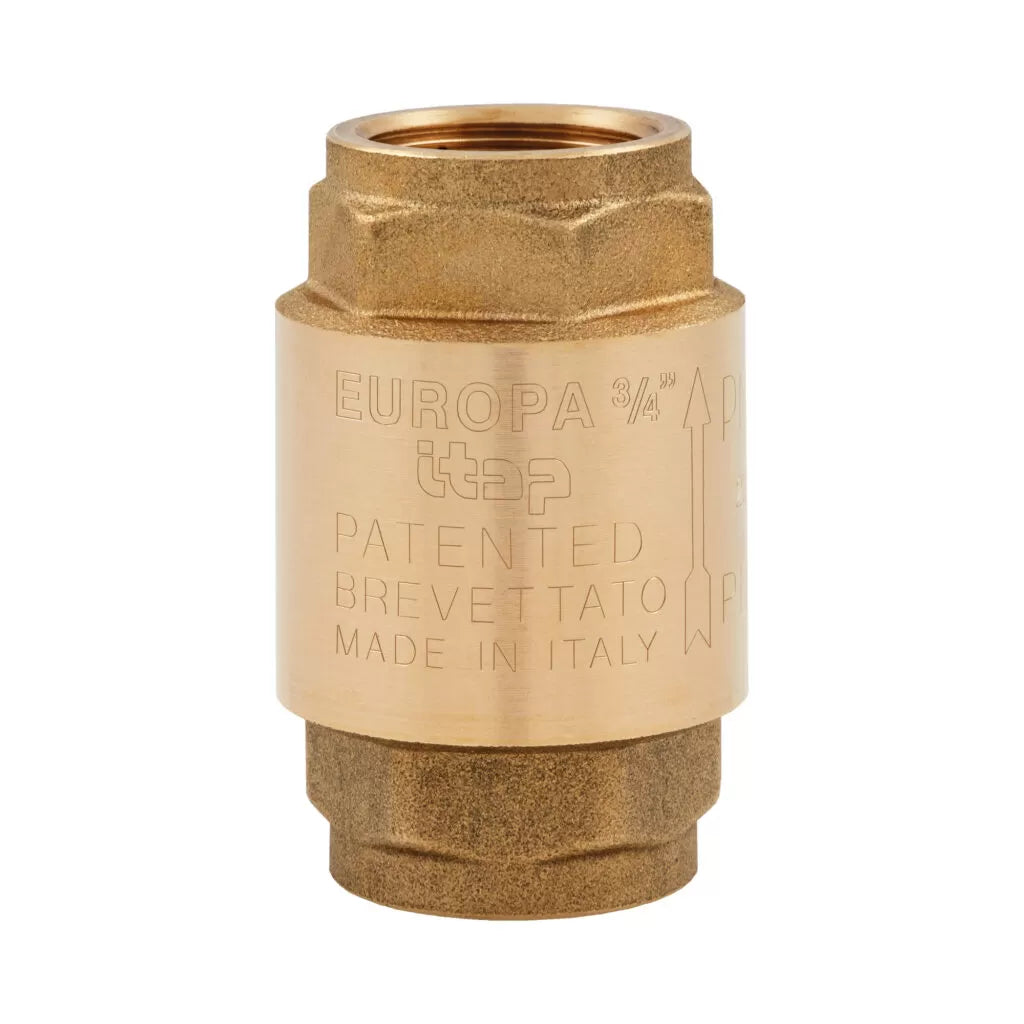

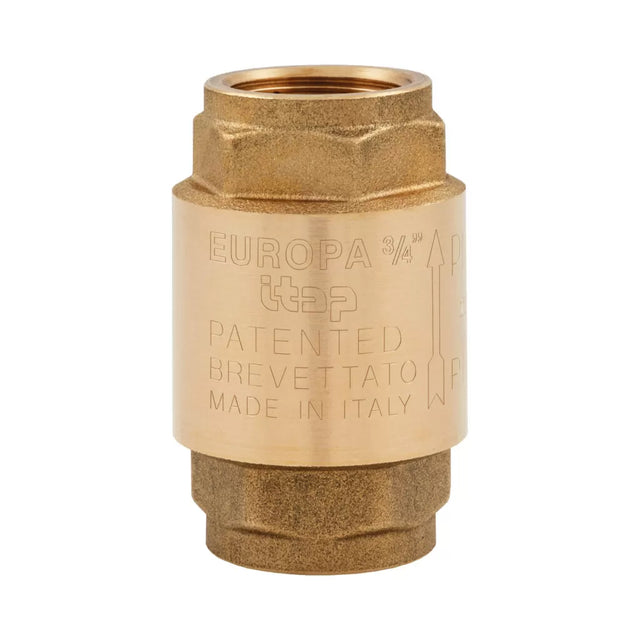

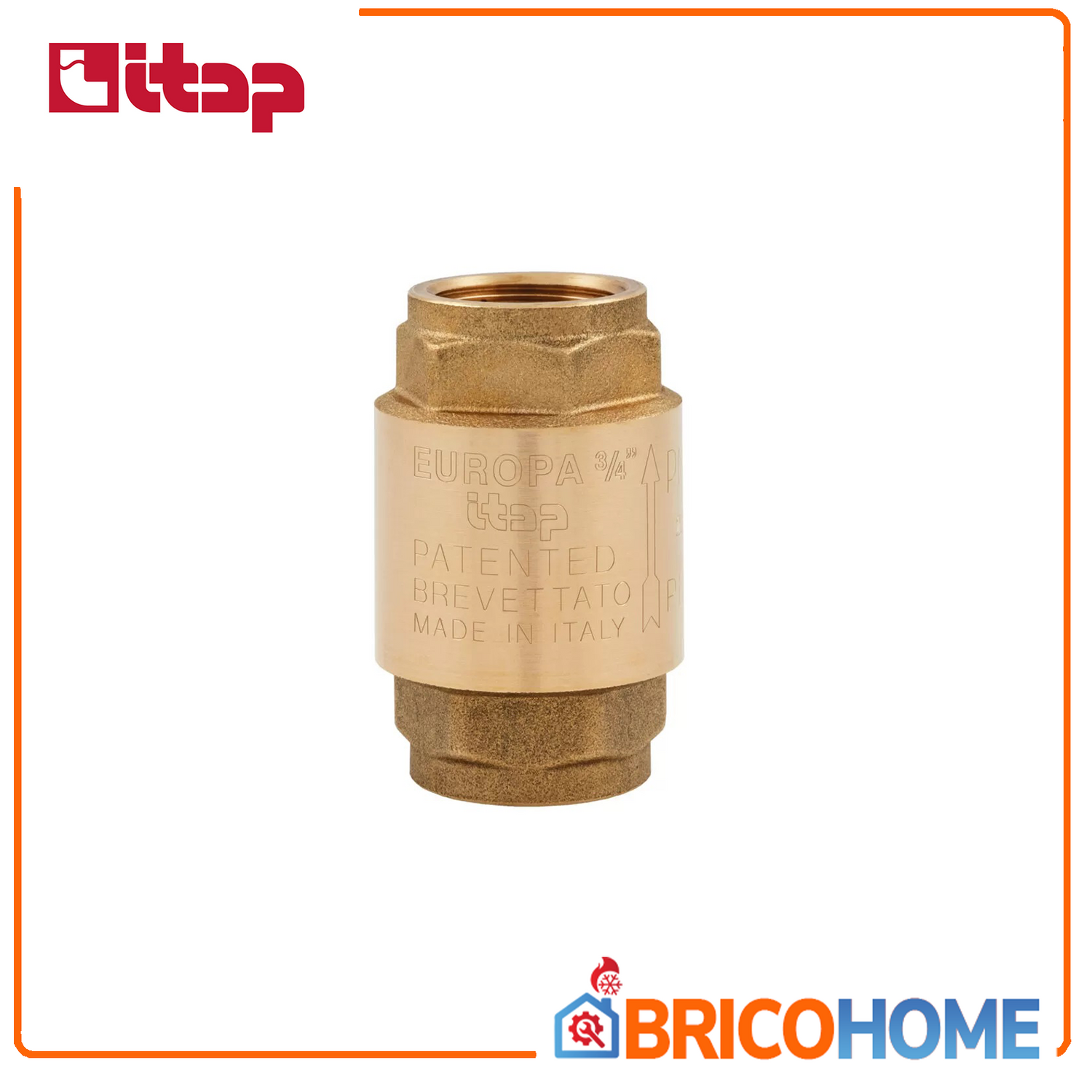

Brass check valve 1" 1/4 (DN 32) EUROPA® ITAP
€16,90
€18,00
SIZE: 1" 1/4 (DN 32) Description Suitable for use in hydraulic, heating, air conditioning and pneumatic systems. Can be installed in any position: vertical, horizontal, oblique. Brass body. Seal in stainless steel. NBR gasket. Stainless steel spring. Minimum and maximum operating temperatures: -20°C, 100°C. Threaded connections ISO 228 (equivalent to...
customers are viewing this product
SIZE: 1" 1/4 (DN 32)
Suitable for use in hydraulic, heating, air conditioning and pneumatic systems.
Can be installed in any position: vertical, horizontal, oblique.

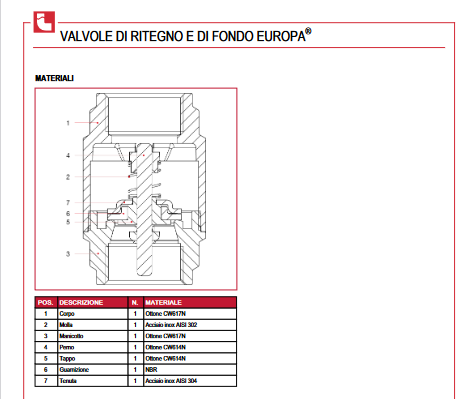

Brass body.
Seal in stainless steel.
NBR gasket.
Stainless steel spring.
Minimum and maximum operating temperatures: -20°C, 100°C.
Threaded connections ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228).
Available with American NPT thread in sizes from 1/2” to 4”.

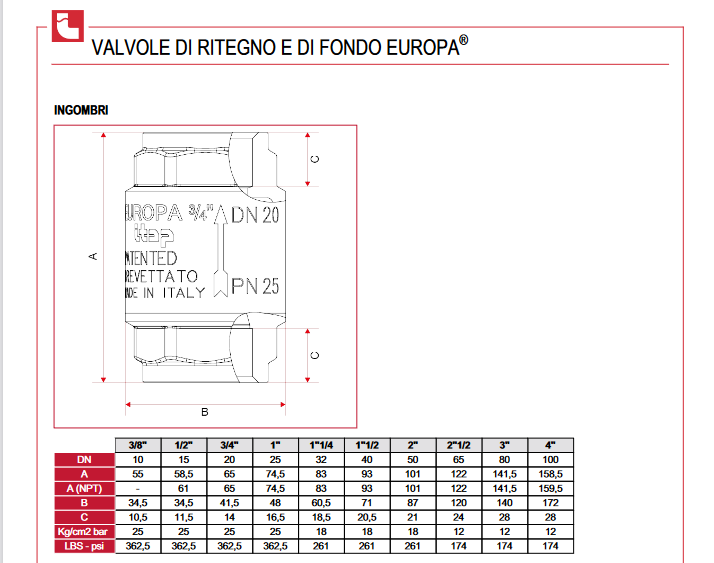

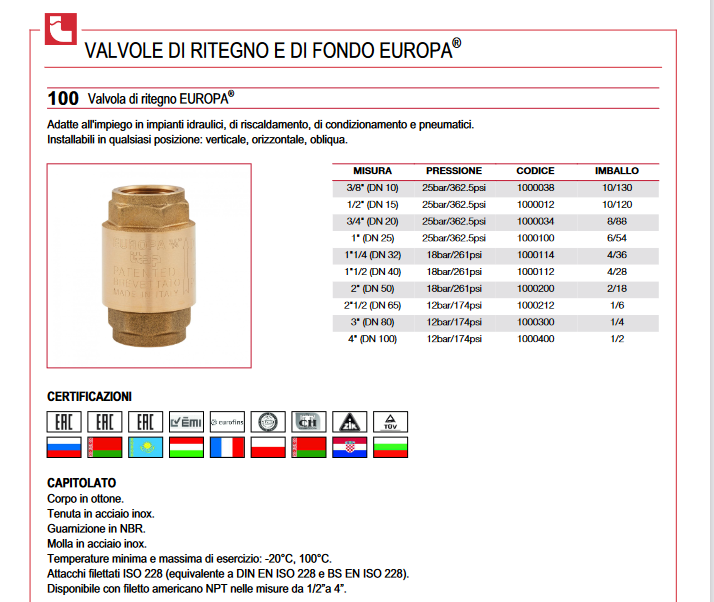

| Measure | Pressure | Code | |
|---|---|---|---|
| 1/2" (DN15) | 25bar/362.5psi | 1000012 | |
| 3/4" (DN20) | 25bar/362.5psi | 1000034 | |
| 1" (DN25) | 25bar/362.5psi | 1000100 | |
| 1"1/4 (DN32) | 18bar/261psi | 1000114 | |
| 1"1/2 (DN40) | 18bar/261psi | 1000112 | |
Data sheet available here
